Gear Train for 2002 Dodge Ram 1500

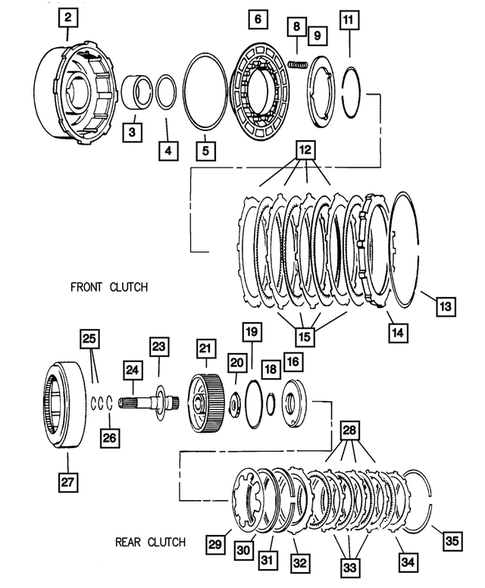

No.
Part # / Description / Price
Price
N/A
Check Ball
Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: Dia-.187. Transmission Overdrive Clutch Piston Check Valve
N/A
Rear Clutch Retainer Seal Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: Piston Retainer Oil Seal Lock, 1-7/8" O.D.
N/A
Transmission Clutch Seal Package Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: [4637078ab also for an1].
4
Front Clutch Piston Seal Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: Front Clutch Piston, Inner
5
Front Piston Clutch Seal Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: Front Clutch Piston, Outer
9
Transmission Retainer Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: Front. Clutch Piston Spring
11
Snap Ring Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: Frt. Clutch, Inner, .060" Thk., 3" I.D.
13
Snap Ring Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: Frt. Clutch, .050" Thk., 7-8/64" O.D.
14
Transmission Clutch Reaction Plate Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: Rear. Clutch Reactioin
18
Rear Clutch Piston Seal Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: Rear Clutch Piston, Inner
19
Rear Clutch Piston Seal Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: Rear. Clutch Piston, Outer
20
Output Shaft Thrust Washer Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: Red .068. Intermediate Shaft, Thrust, w/ 3 Point Bronze Face, .068" Thk.
21
Transmission Retainer Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: Rear Clutch Piston
21
Transmission Retainer Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: Rear Clutch Piston
23
Front Clutch Thrust Washer Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: Front. Clutch Thrust, Rear
24
Transmission Input Shaft Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: Input.
25
Input Shaft Seal Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: INPUT SHAFT
26
Snap Ring Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: Rr. Clutch Piston Retainer, .060" Thk., 1-31/64" O.D.
29
30
Rear Clutch Piston Spacer Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: Rr. Clutch Piston Spring, Plastic, 6-13/16" O.D
31
Rear Clutch Spring Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: Rear. Clutch Wave
32
Clutch Pressure Plate Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: Rear. Clutch Pressure, Front
33
35
Snap Ring Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: .060``-.062`` Thick
35
Snap Ring Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: .074``-.076`` Thick
35
Snap Ring Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: .106``-.108`` Thick
No.
Part # / Description / Price
Price

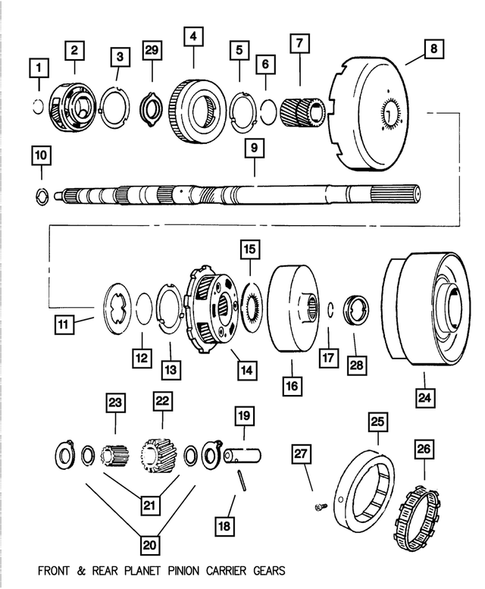

1
Snap Ring Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: 1.108 Free Diameter. .062``-.066`` Thick
2
Planetary Carrier Thrust Washer Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: Rear, With / 4 Tabs , 3 13/32` O.D.
4
Front Annulus Gear Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: WIth Support 2.5` Diameter Center Hole
4
Front Annulus Gear Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: WIth Support 2.5` Diameter Center Hole
5
6
Sun Gear Snap Ring Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: Driving Shell Lock
7
8
9
Transmission Intermediate Shaft Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: With Plug.
10
Transmission Module Plate Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: Intermediate Shaft, Thrust .060" Thick
11
Sun Gear Driving Shell Plate Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: Thrust, with 4 Inside Tongs
14
15
Annulus Gear Thrust Plate Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: Rear Annulus Gear Thrust, with 31 Inside Teeth, 3-23/64"
16
Rear Annulus Gear Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: REAR ANNULUS
17
Snap Ring Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: Reverse Drum Retaining
18
Dowel Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: .108x1.00. Front and Rear, Planet Pinion Shaft
19
20
Planetary Carrier Thrust Washer, Front And Rear Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: Front.
21
Planet Pinion Thrust Washer Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: Front.
22
Transmission Planetary Pinion Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: Front.
23
Front And Rear Pinion Roller Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: Front.
24
Automatic Transmission Drum Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: Reverse
25
Overrunning Clutch Cam Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: 14 Cam Lobes.
26
Overrunning Clutch Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: 14 Rollers Nylon Caged, "O" Running
27
Hex Head Bolt And Washer, Mounting Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION. Transmissions - All Manual.
Description: .250-20x.500. Differential Bearing Adjusting Lock to Bearing Cap
MSRP $9.45
$9.04
MSRP $9.45
$9.04
28
No.
Part # / Description / Price
Price

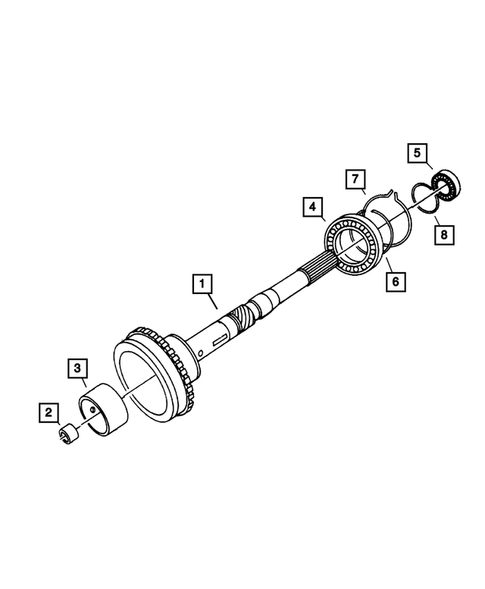

1
Output Shaft Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: Shaft and Bushings
4
Output Shaft Bearing Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: Front.
5
Output Shaft Bearing, Rear Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION. MULTI-SPEED AUTO 45RFE TRANSMISSION.
Description: 52105959aa. From 9/10/02. Rear.
8
Snap Ring, Rear Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION. MULTI-SPEED AUTO 45RFE TRANSMISSION.
Description: Rear.
MSRP $11.55
$10.96
MSRP $11.55
$10.96
